Usado 2019 Mora Primus 152012 em Alemanha
Usado
Doubleclick to zoom in
Fale com o vendedor para
fotos e informações adicionais.
Especificações
- Condição
- usado
- Ano
- 2019
- Número de estoque
- DE-MEA-MOR-2019-00003
- Machine depth
- 2505 mm
- Machine height
- 4125 mm
- Machine weight
- 5530 kg
- Number of axes
- 3
- Table load
- 4500 kg
- X-axis travel
- 1500 mm
- Y-axis travel
- 2000 mm
- Z-axis travel
- 1200 mm
- Renishaw sp25m full kit
- SM25-1/-2/-3 (with SH25-1/-2/-3), TM25-20 adapter; extra SM25-4 (with SH25-4) & SM25-5 (with SH25-5)
- Inca3d premium (dcc)
- Shape Deviation, Path Wizard, Simulation, Statistics, Excel reports, graphical programming, CAD import IGES/STEP, Master Scan Functions + Assist SP25, FCR25 support, USB dongles (HASPHL)
- Accuracy (iso 10360, typical with sp25m)
- mpee 3. 0 + l/300 µm | mpep 3. 0 µm | mpe_thp 4. 4 µm / 68 s
- Dynamics
- up to 519 mm/s | 1,732 mm/s²
- Probing/scanning
- renishaw ph10m + sp25m (sm25-1…-5), fcr25/fcr25-tc (temperature-controlled)
- Software
- inca3d premium (iges/step, scan options)
- Operating conditions
- 20 °c ±2 °c; temperature gradients ≤ 1 °c/h and ≤ 1 °c/m
- Pneumatics
- 6 bar, dry and oil/particle-free
- Power (controller)
- 90–240 v, 50/60 hz, 16 a; approx. 600 va (psu up to 2,000 va)
- Subcategoria
- Measuring
- Subcategoria 2
- Machine tools
- Subcategoria 3
- Coordinate measuring machine (cmm)
- ID de anúncio
- 104598040
Descrição

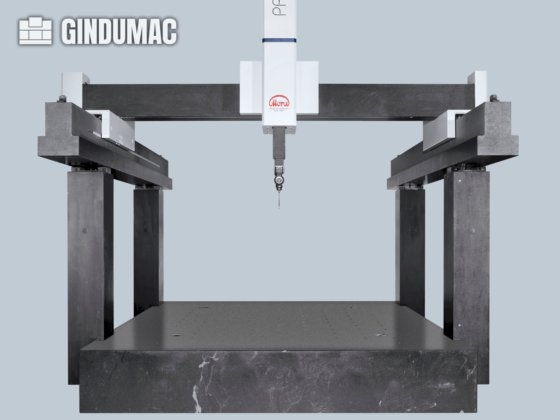

This 3-Axis Mora Primus 152012 was manufactured in 2019. It features a large measuring range with X-axis at 1500 mm, Y-axis at 2000 mm, and Z-axis at 1200 mm. Supports a maximum load of 4500 kg, ensuring robustness for various tasks. With a vector speed up to 519 mm/s, it offers efficient operations. If you are looking to get high quality measuring capabilities consider the Mora Primus 152012 machine we have for sale. Contact us for more information.
Additional equipment
3-axis CNC controller, Pantec SP25/SP600 interface, EAGLE PAD joystick (6.5 m)

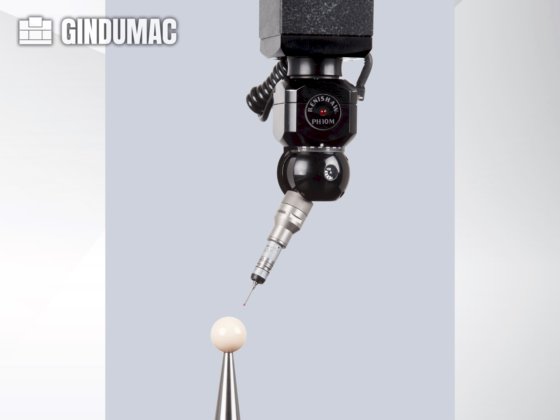

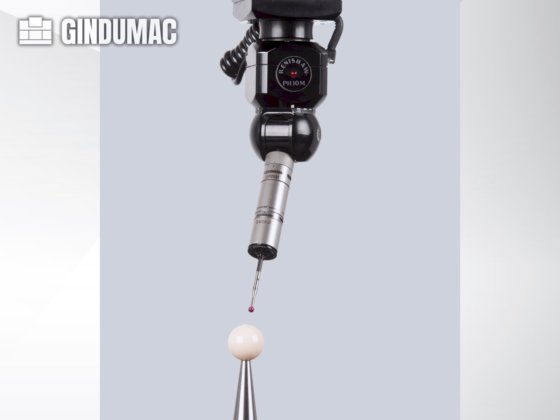

Renishaw PH10M (720 positions, 7.5°) + PHC10-2 controller
Extensive M2/M3 stylus kits (Ø 0.3–30 mm, extensions), M2↔M3 / M3↔M2 adapters
FCR25 + FCR25-TC (3+3-port, temperature-controlled) with MRS1000/MRS600 rail system
Ø 30 mm reference sphere
Industrial PC (e.g., Intel i5, 8 GB, 256 GB SSD, 22″ monitor, Windows 10) + color laser printer
