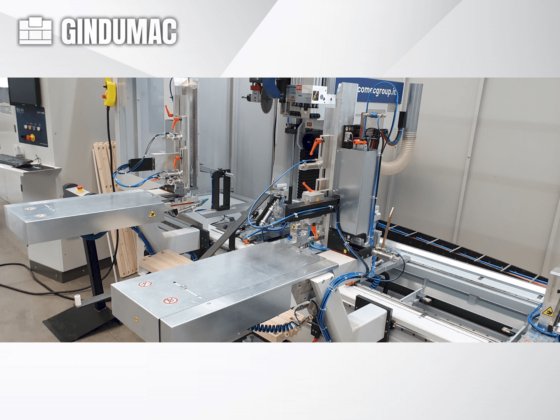

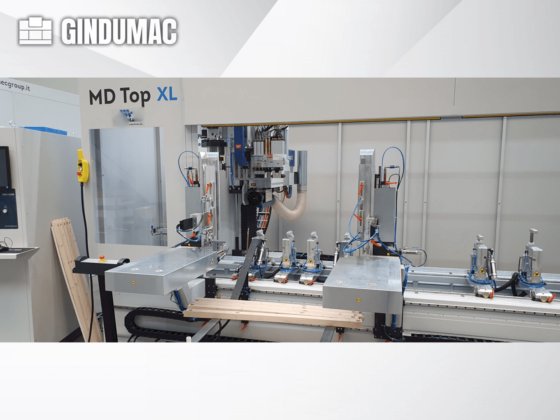

Usado 2024 COMEC MD TOP XLS CA2 em Alemanha
Usado
Doubleclick to zoom in
Fale com o vendedor para
fotos e informações adicionais.
Especificações
- Condição
- usado
- Ano
- 2024
- Número de estoque
- DE-CNC-COM-2024-00001
- Number of axes
- 3

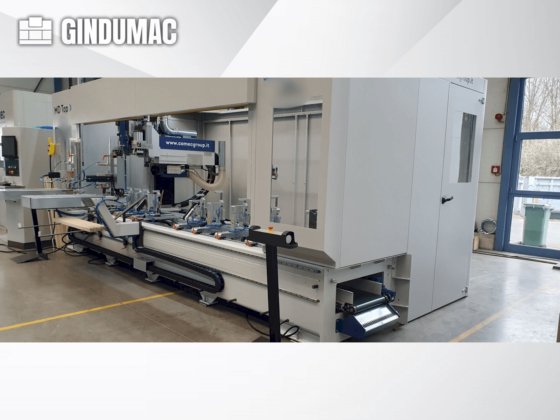

- Protective cabin
- Surrounding with fixed sheet metal panels and front protective screens, work cycle controlled.
- Chip removal conveyor
- With outlet to the right side and motor 0.37 KW.
- Automatic magazine ca 2
- adjustable on linear guides, fixed on the left with easy access for the operator.
- Coated discharge chute
- for the machined workpieces.
- Connection
- 400 v/ 50 hz
- Cad cam
- free-standing control cabinet next to the machine with an industrial pc featuring a 17" color touchscreen. Includes ssd 120 gb, ethernet, usb/rs 232 interface, and supports 3-d display programming.
- Remote capabilities
- network connection for programming and remote support. Includes a remote control console for machine operation during testing and setup.
- Positioning speed
- maximum 70 m/min for the unit carrier.

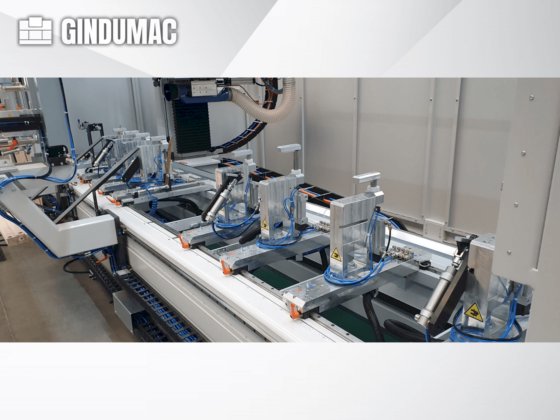

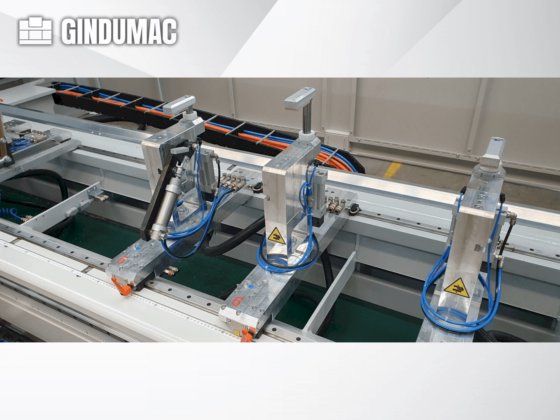

- Specially developed clamping table
- moves in the x direction automatically under program control.

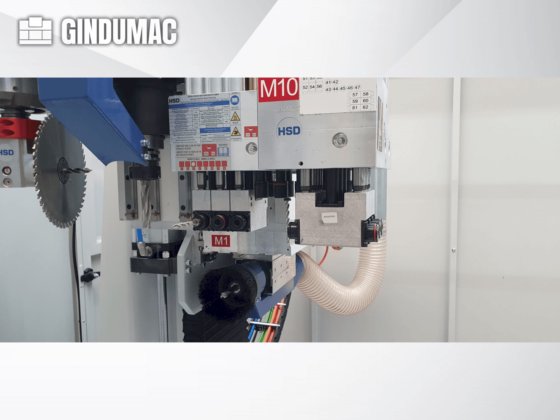

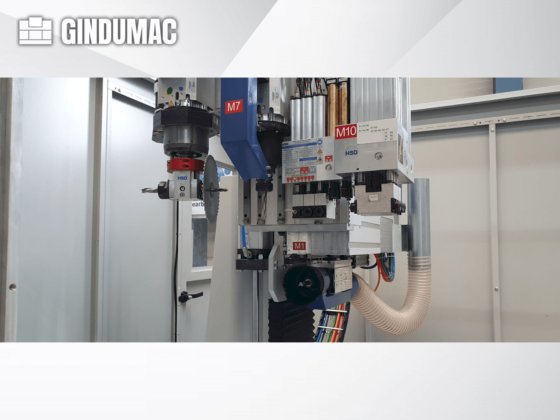

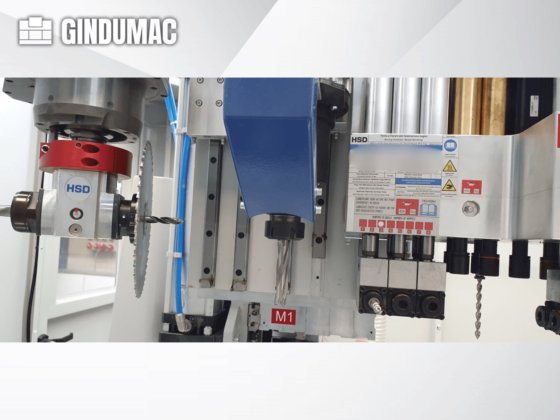

- Vertical milling electrospindle
- 8. 0 kw, 12000/18000 rpm, tool holder iso 30 cone + er 32 collet

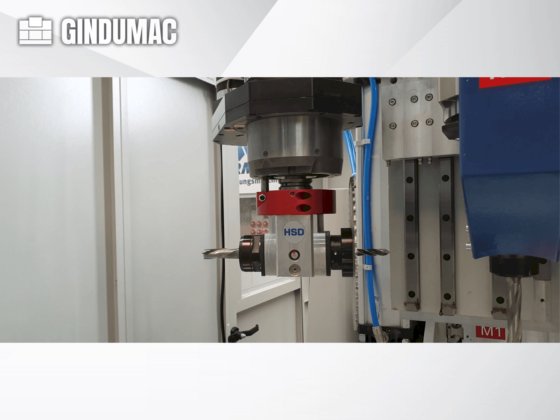

- Milling/sawing/drilling spindle
- motor 7. 0 kw, 8000 - 12000 rpm, 360°c axis interpolating
- Horizontal electric spindle
- 1 milling spindle, motor 5. 6 kw, 12000 – 18000 rpm, collet er 32
- Subcategoria
- Wood working
- Subcategoria 2
- Cnc wood machining
- Subcategoria 3
- Cnc wood machining centre
- ID de anúncio
- 101870774
Descrição
This 3-axis COMEC MD TOP XLS CA2 was manufactured in 2024. Ideal for precise and efficient woodworking, this CNC Wood Machining Centre is a robust choice for professionals. Consider the opportunity to buy this COMEC MD TOP XLS CA2 CNC Wood Machining Centre. Contact us for more information.
Additional equipment
Machine Benefits
Qualitative Machine Benefits
Automatic magazine loading
360° sawing, milling, and drilling unit
Self-equipped support benches
Heavy basic machine stand, electro-welded.
Individual equipment configurations possible, including head configurations for saws, milling units, and drilling heads.
Technical Machine Benefits
Maximum sizes: x-axis: 3350 mm (or 1500 + 1500 mm in two work areas) y-axis: 200 mm z-axis: 180 mm

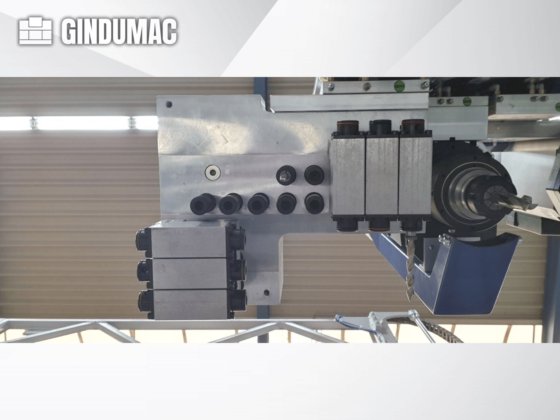

5 vertical drilling spindles, spacing 32 mm
3 horizontal double output spindles on both y and x-axis, spacing 32 mm
Extra Information
Machine still under power
